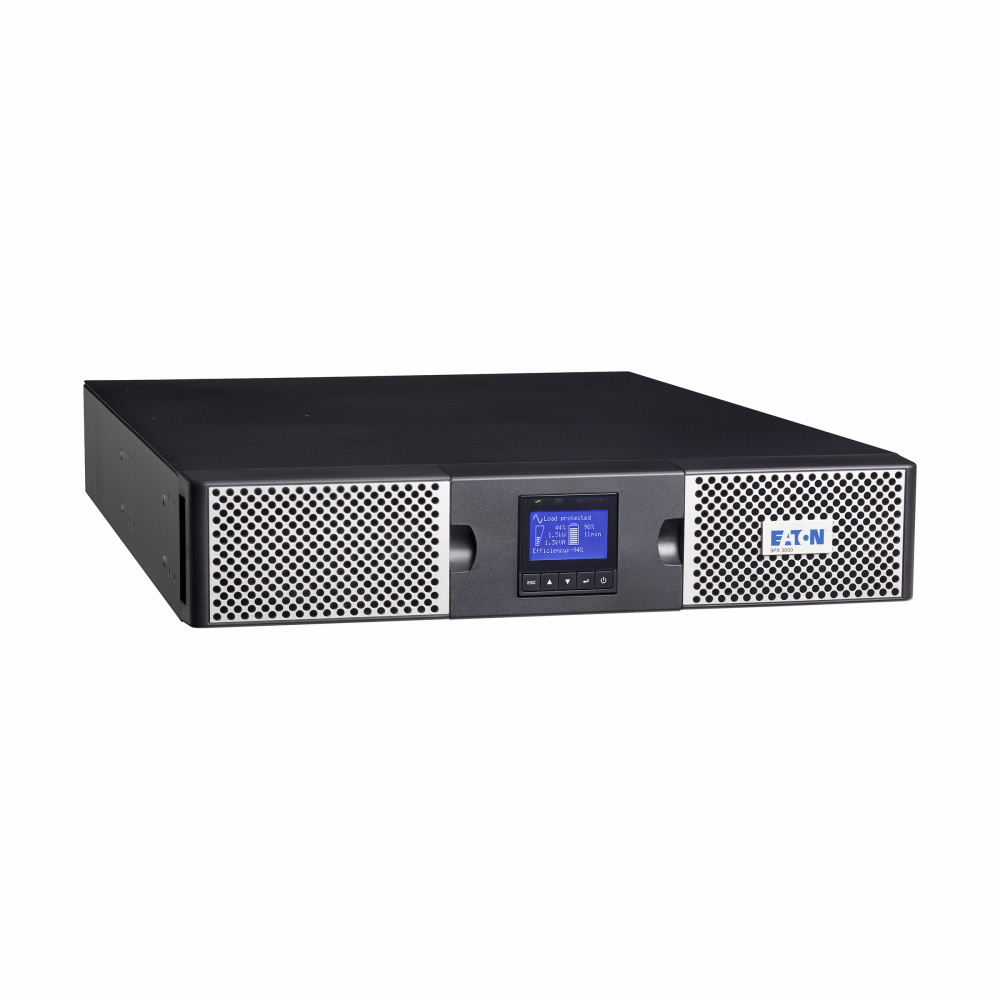

Eaton 9PX2200IRTNBS. UPS topology: Double-conversion (Online), Output power capacity: 2.2 kVA, Output power: 2200 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Rackmount/Tower, Product colour: , Cable length: 1.8 m. Width: 580 mm, Depth: 770 mm, Height: 230 mm
The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
| Weight | 3 kg |
|---|---|
| Cable length | 1.8 m |
| Product Condition | New Retail |
| Product Condition | |
| Typical backup time at full load | 3 min |
| Form factor | Rackmount/Tower |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 1 |
| Weight | 25.6 kg |
| Battery technology | Sealed Lead Acid (VRLA) |
| Output power capacity | 2.2 kVA |
| Operating altitude | 0 – 3000 m |
| Operating relative humidity (H-H) | 0 – 96% |
| Operating temperature (T-T) | 0 – 40 °C |
| Noise level | 40 dB |
| Certification | IEC/EN 62040-1 |
| Output power | 2200 W |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Power factor | 1 |
| Depth | 770 mm |
| Height | 230 mm |
| Width | 580 mm |
| Efficiency | 93.5% |
| Power plug | C20 coupler |
| AC outlets quantity | 10 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power protection features | Overdischarge |
| Automatic battery test | Yes |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Input operation voltage (max) | 276 V |
| Input operation voltage (min) | 100 V |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Input power factor | 0.99 |
| Output power factor | 1 |
| Waveform | Sine |
| Battery voltage | 12 V |
| Battery capacity | 7 Ah |
| Number of batteries supported | 6 |
| UPS topology | Double-conversion (Online) |
| Output frequency | 50/60 Hz |
| Quick installation guide | Yes |
| Cables included | Input power cable, Serial, USB cable |
| Rack mount kit | Yes |
| Serial interface | Yes |
| USB port | Yes |
| Serial interface type | RS-232 |
| Efficiency (ECO mode) | 98% |
| Input frequency | 40/70 Hz |
| Sustainability compliance | Yes |
| Sustainability certificates | CE, ENERGY STAR |
| Display type | LCD |
