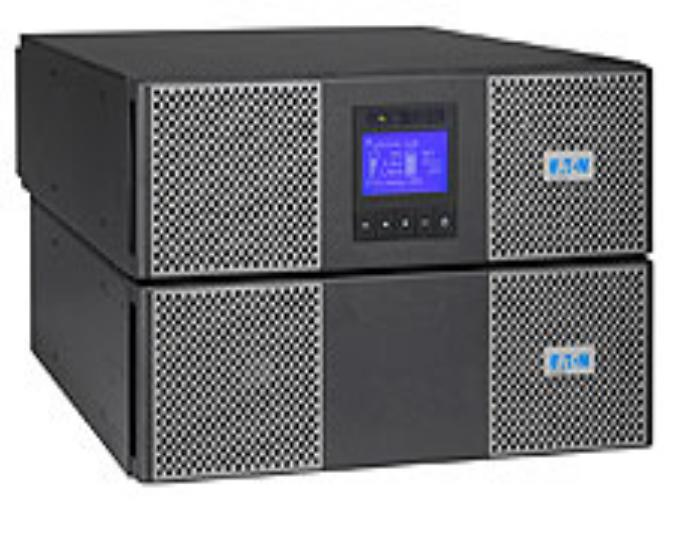

Eaton 9PX Double-conversion (Online) 6 kVA 5400 W 5 AC outlet(s)

Eaton 9PX Double-conversion (Online) 6 kVA 5400 W 5 AC outlet(s)

£4,271.57 Ex VAT

6000 VA, 5400W, 380/400/415V, 4 x IEC-320-C19

SKU: 9PX6KIRTNBP31 Categories: , , , Brand:

Description

Eaton 9PX. UPS topology: Double-conversion (Online), Output power capacity: 6 kVA, Output power: 5400 W. AC outlet types: C19 coupler, Terminal, Power plug: Terminal, AC outlets quantity: 5 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 30 min. Form factor: Rackmount/Tower, Product colour: , Rack capacity: 6U. Width: 440 mm, Depth: 700 mm, Height: 260 mm

The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.

Additional information

Weight 122300 kg
Form factor

Rackmount/Tower
Product Condition

New Retail
Product Condition

Typical backup time at half load

30 min
USB 2.0 ports quantity

1
Serial ports quantity

1
Weight

88 kg
Nominal output voltage

230 V
Battery technology

Sealed Lead Acid (VRLA)
Nominal input voltage

400 V
Output power capacity

6 kVA
Hot-swap battery

Yes
Operating temperature (T-T)

0 – 40 °C
Noise level

48 dB
Certification

IEC/EN 62040-1, IEC/EN 62040 -2, IEC/EN 62040-3 (Performance), CE, CB report (TUV)
Safety

IEC/EN 62040-1
LED indicators

Yes
Bundled software

Intelligent Power Software suite
Output power

5400 W
Output voltage Total Harmonic Distortion (THD)

2%
Power factor

0.9
Input current Total Harmonic Distortion (THD)

5%
Depth

700 mm
Height

260 mm
Width

440 mm
Efficiency

94%
Power plug

Terminal
AC outlets quantity

5 AC outlet(s)
AC outlet types

C19 coupler, Terminal
RS-232 ports

1
Automatic battery test

Yes
Output operation voltage (min)

200 V
Output operation voltage (max)

240 V
Input operation voltage (max)

480 V
Input operation voltage (min)

305 V
Cooling type

Active
Number of input phases

3
Waveform

Pure sine
UPS topology

Double-conversion (Online)
Output frequency

50/60 Hz
Rack mount kit

Yes
USB port

Yes
Rack capacity

6U
Built-in fan

Yes
Management card included

Yes
Input frequency

40/70 Hz
Sustainability certificates

ENERGY STAR
Display type

LCD
Harmonized System (HS) code

85078000
