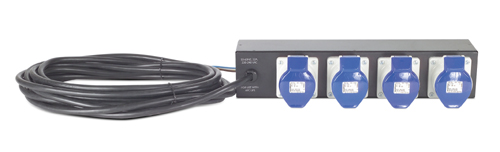

APC Rack PDU Extender, Basic, 2U, 32A, 230V, (4) IEC 309-32 power distribution unit (PDU) 4 AC outlet(s)

APC Rack PDU Extender, Basic, 2U, 32A, 230V, (4) IEC 309-32 power distribution unit (PDU) 4 AC outlet(s)

£603.37 Ex VAT

RACK PDU BASIC 2U 32A 230V (4) IEC 309-32

In stock

SKU: AP7586 Categories: , , , Brand:

Description

APC Rack PDU Extender, Basic, 2U, 32A, 230V, (4) IEC 309-32. PDU types: Basic, Rack capacity: 2U, Mounting: Horizontal. AC outlets quantity: 4 AC outlet(s), Input connection type: Hard Wire 3-wire, Output connections: (4) IEC 309 . Cable length: 8.53 m. Nominal input voltage: 230 V, Nominal output voltage: 230 V, Output voltage: 230 V. Dimensions (WxDxH): 437 x 89 x 89 mm, Weight: 4.09 kg

The most mounting options in the market.
APC offers a wide variety of Basic Rack Power Distribution Units (PDUs), which allow users to distribute power outlets to rack-mount equipment. Horizontal and vertical units are available as well as a variety of power inputs and outputs to fit most power environments. APC now offers Basic Rack PDUs that mount vertically, without tools in the rear channel of a NetShelter VX.

Additional information

Weight 5897.3333 kg
Output connections

(4) IEC 309
Product Condition

I/O ports

Hard Wire 3-wire
(4) IEC 309
Mounting

Horizontal
Input connection type

Hard Wire 3-wire
Maximum input current per phase

32 A
Nominal input voltage

230 V
Maximum total current draw per phase

32 A
Cable length

8.53 m
Load capacity

7680 VA
Output voltage

230 V
Product colour

Black
Package weight

5 kg
Package dimensions (WxDxH)

521 x 521 x 152 mm
Dimensions (WxDxH)

437 x 89 x 89 mm
Weight

4.09 kg
Nominal output voltage

230 V
Operating temperature (T-T)

0 – 45 °C
Operating relative humidity (H-H)

0 – 45%
Storage temperature (T-T)

-25 – 65 °C
Storage relative humidity (H-H)

0 – 95%
PDU types

Basic
AC outlets quantity

4 AC outlet(s)
Maximum power

7680 W
Rack capacity

2U
