£3,592.96 Ex. VAT
In Stock: Delivery schedule confirmed upon order processing.

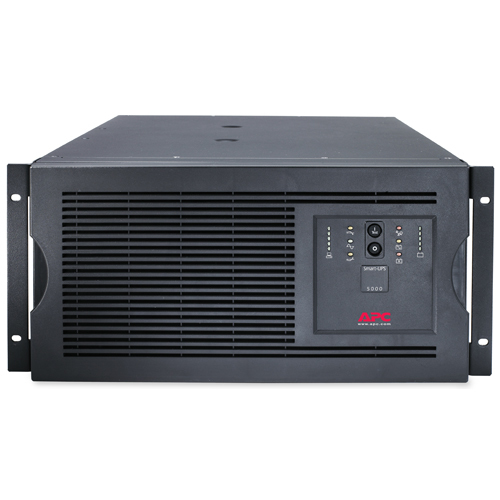

APC Smart-UPS. UPS topology: Line-Interactive, Output power capacity: 5 kVA, Output power: 4000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: Hard Wire 3-wire, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 1632 VAh, Typical backup time at full load: 9.4 min. Form factor: Rackmount/Tower, Product colour: , Rack capacity: 5U. Width: 483 mm, Depth: 660 mm, Height: 222 mm
APC Smart-UPS, 4000 Watts / 5000 VA,Input 230V / Output 230V, Rack Height 5 U
Includes: CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack Mounting support rails, Smart UPS signalling RS-232 cable, User Manual, Web/SNMP Management Card
Standard Lead Time: Usually Ships within 4 Weeks
-Adjustable voltage-transfer points.
-Audible alarms.
-Automatic self-test.
-Boost and Trim Automatic Voltage Regulation (AVR).
-Cold-start capable.
-Disconnected battery notification.
-Hot-swappable batteries.
-LED status indicators.
-Network manageable.
-Plug-and-Play installation.
-Rack/Tower convertible.
-Resettable circuit breakers.
-Safety-agency approved
-Serial Connectivity.
-SmartSlot.
-Temperature-compensated battery charging.
| Weight | 3 kg |
|---|---|
| Typical backup time at full load | 9.4 min |
| Typical backup time at half load | 26.7 min |
| Package weight | 106.8 kg |
| Weight | 97.7 kg |
| Nominal output voltage | 230 V |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Number of output IEC jumpers | 4 |
| Nominal input voltage | 230 V |
| Surge energy rating | 480 J |
| Hot-swap battery | Yes |
| Operating altitude | 0 – 9000 m |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 95% |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 45 °C |
| Non-operating altitude | 0 – 15000 m |
| Noise level | 53 dB |
| Products per pallet | 4 pc(s) |
| Certification | C-tick, CE, EN 50091-1, EN 50091-2, GOST, GS Mark, VDE, REACH, PEP, EOLI |
| LED indicators | Battery replacement |
| Audible alarm(s) | Yes |
| Depth | 660 mm |
| Height | 222 mm |
| Width | 483 mm |
| Surge protection | Yes |
| Efficiency | 96% |
| Power plug | Hard Wire 3-wire |
| AC outlets quantity | 10 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Cold start | Yes |
| Automatic battery test | Yes |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Input operation voltage (max) | 302 V |
| Input operation voltage (min) | 151 V |
| Number of output phases | 1 |
| Waveform | Sine |
| Auto-restart | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| Output frequency regulation | 47 – 53 Hz |
| Package width | 610 mm |
| Package depth | 762 mm |
| Package height | 635 mm |
| Quick installation guide | Yes |
| Cables included | RS-232 |
| Manual | Yes |
| Rack mount kit | Yes |
| Packaging content | Web/SNMP Management Card |
| Software CD | Yes |
| Battery life (max) | 5 year(s) |
| Battery capacity | 1632 VAh |
| Hold time (max) | 4 ms |
| Hold time (min) | 2 ms |
| Products per master (outer) case | 1 pc(s) |
| Rack capacity | 5U |
| Input frequency | 50/60 Hz |
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 85078000 |
