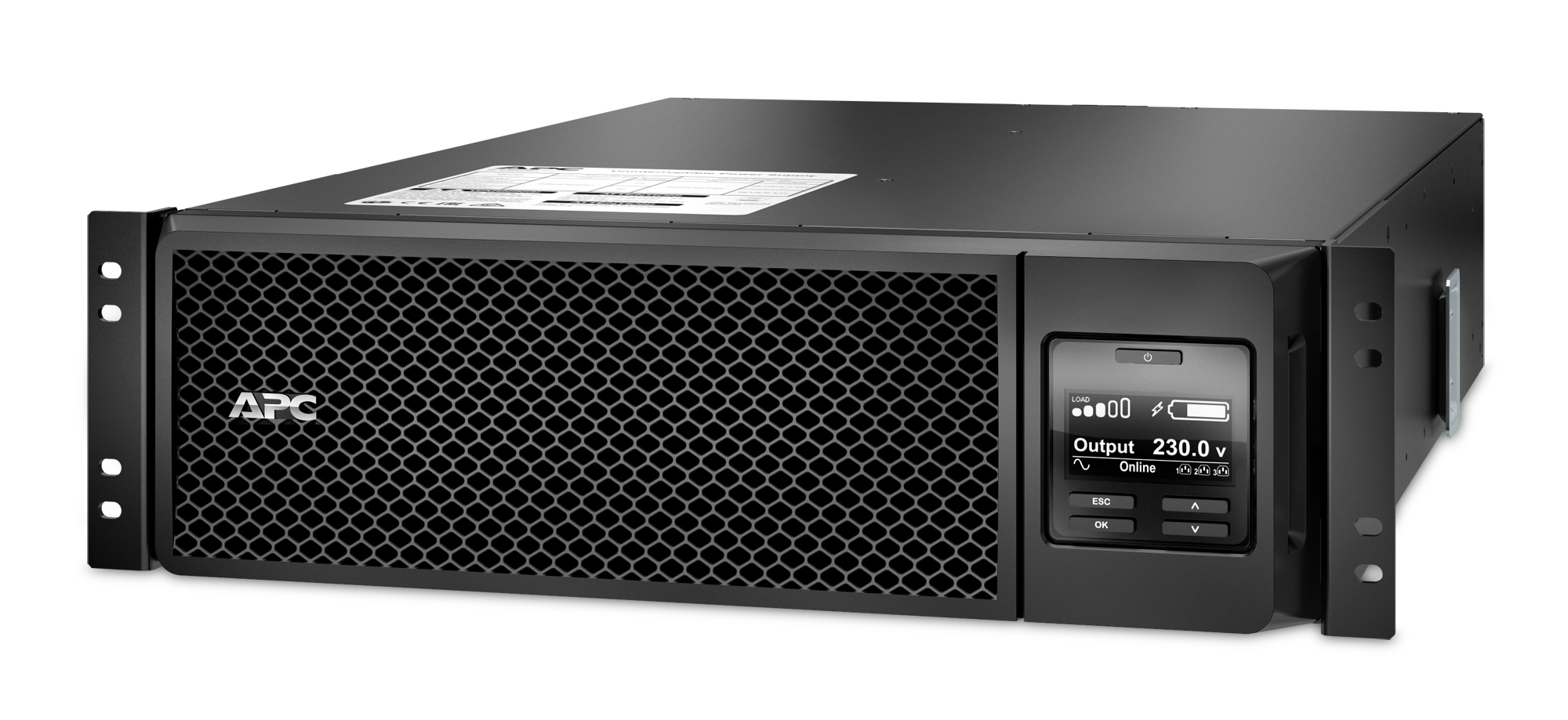

Smart-UPS SRT 5000VA RM 230V
£3,978.47 Ex. VAT
In Stock: Delivery schedule confirmed upon order processing.
APC Smart-UPS On-Line. UPS topology: Double-conversion (Online), Output power capacity: 5 kVA, Output power: 4500 W. AC outlet types: C13 coupler, C19 coupler, Power plug: Terminal, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 845 VAh, Typical backup time at full load: 4 min. Form factor: Rackmount, Product colour: , Rack capacity: 3U. Width: 432 mm, Depth: 719 mm, Height: 130 mm
APC Smart-UPS On-Line,4500 Watts /5000 VA,Input 230V /Output 230V, Interface Port Contact Closure, RJ-45 Serial, Smart-Slot, USB, Extended runtime model
Includes: Documentation CD, Installation guide, Rack Mounting brackets, Rack mounting hardware, Rack Mounting support rails, Temperature Probe, Warranty card
| Weight | 3 kg |
|---|---|
| Typical backup time at full load | 4 min |
| Typical backup time at half load | 11.8 min |
| Package weight | 66.9 kg |
| Weight | 54.4 kg |
| Emergency Power Off (EPO) | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 1.5 h |
| Number of output IEC jumpers | 2 |
| Surge energy rating | 480 J |
| Hot-swap battery | Yes |
| Operating altitude | 0 – 3000 m |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 95% |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 45 °C |
| Non-operating altitude | 0 – 15000 m |
| Noise level | 55 dB |
| Products per pallet | 6 pc(s) |
| Certification | REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE |
| Audible alarm(s) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Depth | 719 mm |
| Height | 130 mm |
| Width | 432 mm |
| Surge protection | Yes |
| Efficiency | 94.1% |
| Power plug | Terminal |
| AC outlets quantity | 10 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Crest factor | 3:1 |
| Cold start | Yes |
| Automatic battery test | Yes |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Input operation voltage (max) | 275 V |
| Input operation voltage (min) | 100 V |
| Waveform | Sine |
| Auto-restart | Yes |
| Output frequency regulation | 50/60 Hz |
| Package width | 610 mm |
| Package depth | 960 mm |
| Package height | 330 mm |
| Quick installation guide | Yes |
| Rack mount kit | Yes |
| Serial interface | Yes |
| USB port | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| Temperature sensor | Yes |
| Warranty card | Yes |
| Packaging content | Web/SNMP Management Card |
| Battery life (max) | 5 year(s) |
| Battery capacity | 845 VAh |
| Rack capacity | 3U |
| Input frequency | 40 – 70 Hz |
| Replacement battery cartridge | APCRBC140 |
| Sustainability certificates | RoHS, ENERGY STAR |
| Display type | LCD |
| Harmonized System (HS) code | 85078000 |
